TIG Welding Foil Sheet Winder Automatic Transformer Foil Winding Machine

1 JUEGO
MOQ
Negociable
Precio
TIG Welding Foil Sheet Winder Automatic Transformer Foil Winding Machine
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
nombre: máquina de bobina de la hoja del transformador
Uso: papel de película de enrollamiento
Poder principal: 22kW
Velocidad de bobinado: 0 ~ 18 RPM
Espesor de aluminio de cupia: 0.2 ~ 2,0 mm
Grosor de aluminio: 0,3 ~ 3.0m m
Fusilero: 2 juegos
Garantía: 12 meses
Resaltar:

TIG welding foil winder machine

,

automatic transformer foil winder

,

foil winding machine with warranty
Información básica
Lugar de origen: Porcelana
Nombre de la marca: STT
Certificación: CE
Número de modelo: BRJ1400-2
Pago y Envío Términos
Detalles de empaquetado: Embalaje en condiciones de navegar
Tiempo de entrega: 45 dias
Condiciones de pago: T/T, L/C
Capacidad de la fuente: 100 conjuntos por año
Descripción de producto
TIG Welding Foil Sheet Winder Automatic Transformer Foil Winding Machine
The BRJ1400-2 Transformer Foil Winding Machine is a specialized industrial device designed for manufacturing transformers and similar products by precisely winding conductive foil materials, typically aluminum or copper foil, instead of traditional round wire. This advanced machine incorporates a TIG welding unit for welding foil and bus bar connections and features a PLC-based control system for precision operation.
Key Features
The transformer foil winding machine offers slow starting capability, smooth running operation, and high torque performance, ensuring reliable and efficient winding processes.
Main Components
  • Main frame
  • Winding unit
  • Foil decoiler
  • Insulation decoiler
  • End-filling strip feeder
  • Cleaning system
  • Cutting system
  • Foil deburring system
  • Edge alignment system
  • Automatic welding unit
  • Electronic control system
  • Pneumatic system
Technical Specifications
Standard specifications for the BRJ1400-2 Transformer Foil Winding Machine are listed below. Custom configurations are available upon request.
Parameter Specification
Maximum Foil Width 1,400mm
Max. Finished Coil OD. 1,000mm
Finished Coil Shape Oval, round and rectangular
Conductor Foil Material Copper or Aluminum
Maximum Conductor Material OD. Φ1,000mm
Conductor Material ID. Φ500mm
Foil Decoiler Number 2 pcs
Foil Decoiler Expanding Range Φ480 ~ 520mm
Max. Coil Weight 2,500KG
Welding Mode TIG
Cutting Mode Electric disc shear
Insulation Decoiler Number 2 pcs
Max. Insulation Material OD. Φ400mm
Insulation Material ID. Φ76mm
End-filling Strip Feeder 8 pcs
Edge Alignment System Photoelectric sensing
Control System PLC
Counting Range 0 - 9999.9
TIG Welding Foil Sheet Winder Automatic Transformer Foil Winding Machine 0

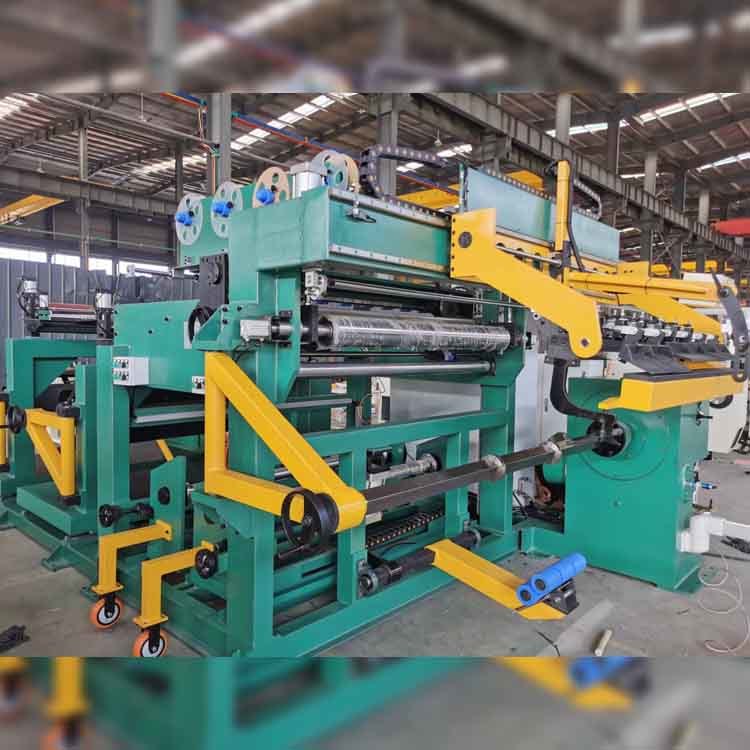

Fig 1: Transformer foil winding machine BRJ1400-2's front view
TIG Welding Foil Sheet Winder Automatic Transformer Foil Winding Machine 1
Fig 2: Transformer foil winding machine BRJ1400-2's back view
TIG Welding Foil Sheet Winder Automatic Transformer Foil Winding Machine 2 TIG Welding Foil Sheet Winder Automatic Transformer Foil Winding Machine 3 TIG Welding Foil Sheet Winder Automatic Transformer Foil Winding Machine 4
