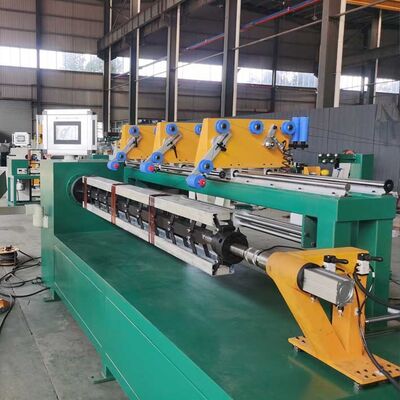

ZPX500-3 Three-Head Automatic Coil Winding Machine with PLC Control and 7.5kW Power

Model ZPX500-3 coil winding machine is a high-efficiency multi-wire winding equipment engineered for simultaneous production of three coils, with a maximum coil winding height up to 500 mm. This kind of coil winding machine adopts a servo-driven wire guide to achieve neat and automatic wire arrangement. Equipped with a PLC intelligent control system, the coil winding machine completes fully automatic winding of copper or aluminum wires once relevant parameters are preset. A foot switch is configured for convenient operation, which can start/stop the device and switch the spindle rotation direction flexibly. This winding machine delivers soft startup, stable operation, powerful output torque and superior automation performance.

• Soft slow startup
• Steady and smooth operation
• Complete functional configuration
• Servo motor driven wire guiding mechanism
• Intuitive operation, high precision and stable reliability
• High degree of automation

Standard technical parameters of ZPX500-3 are listed as follows. Customized versions are available upon customers’ special requirements.
